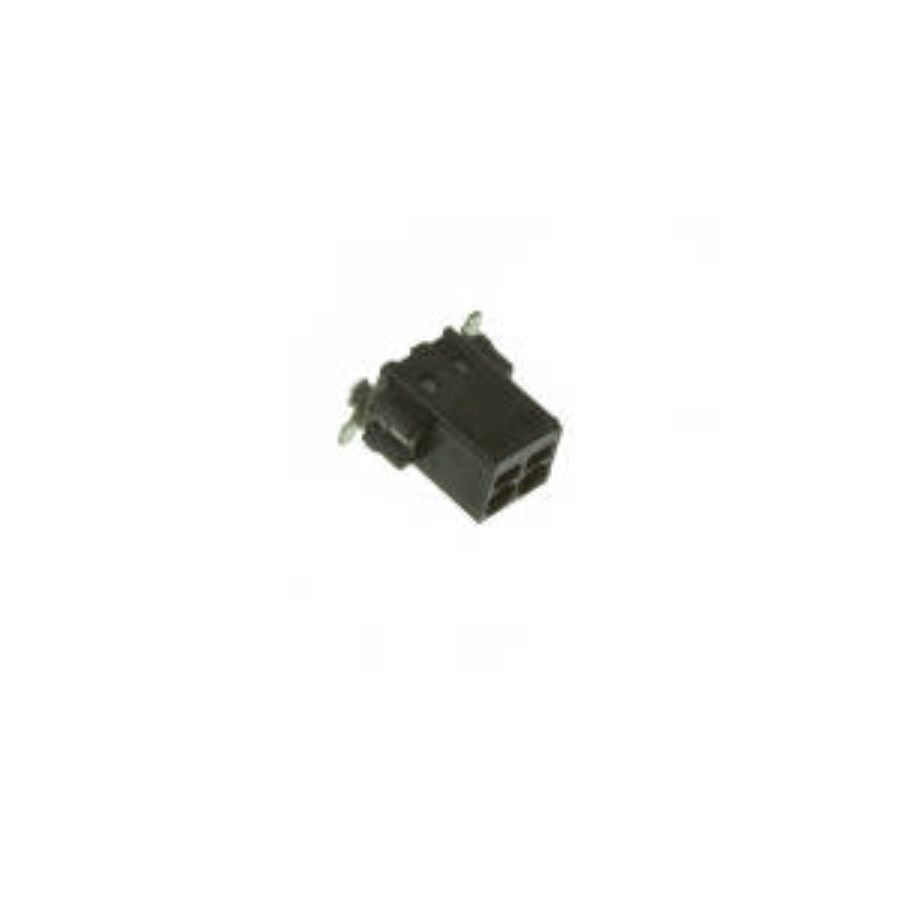

1771091
Manufacturer:
Phoenix Contact
Mfr.Part #:
1771091
Datasheet:
Description:
Terminal Blocks SMD/SMT 2 2.5 mm 5 A 150 V 26 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 9 mm |
| Termination | Spring Clamp |
| Number of Pins | 2 |
| Height | 7.8 mm |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 150 V |
| Weight | 1.949994 g |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current | 5 A |
| Current Rating | 5 A |
| Max Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Color | Black |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 24 AWG |
| Housing Color | Black |
| Connection Method | Push-In |
| Wire Gauge Range | 26 AWG to 20 AWG |
Stock: 93
Distributors
pcbx
pcbxUnit Price$1.33440
Ext.Price$1.33440
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33440 | $1.33440 |
| 10 | $1.10755 | $11.07550 |
| 25 | $1.01499 | $25.37475 |
| 50 | $0.93017 | $46.50850 |
| 100 | $0.85244 | $85.24400 |
| 300 | $0.80546 | $241.63800 |
| 500 | $0.76106 | $380.53000 |
